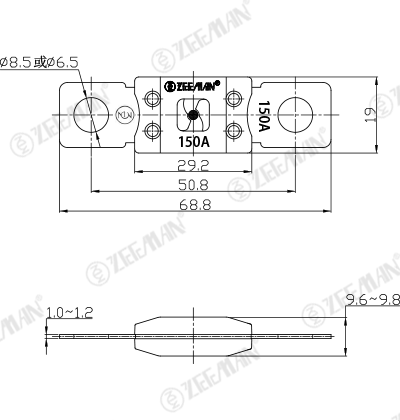

ANM FUSES
BOLT-ON FUSES
Product Description

Slow Blow

Voltage Rating : DC32V or less

Interrupting Rating: 2000A @32VDC

Operating Temperature Range: -40℃ to +125℃

Complies with ISO 8820-5 / GB/T31465.5

Materials :
1. Copper Alloy with Gold Plated / Zinc Alloy
2. Plastic

※ Characteristics of fuses according to use conditions may change.

Purchase :
Inquiry
Product Introduction

Time-Current Characteristics

Test Current Opening Time
Min. Max.
100% 4 hrs ---
135% 120 s 1800 s
200% 1 s 15 s
350% 0.3 s 5 s
600% 0.1 s 1 s

Fuse Catalogue

Item No. Ampere
ANM 40 40 A
ANM 50 50 A
ANM 60 60 A
ANM 70 70 A
ANM 80 80 A
ANM 100 100 A
ANM 125 125 A
ANM 150 150 A
ANM 175 175 A
ANM 200 200 A
ANM 225 225 A
ANM 250 250 A
